FOILEX portable Micro, Mini and Midi Skimmers are all Suction Weir Skimmers without an
onboard pump and are available in two different versions.
.
Area of operation for the 3-pontoon Weir Skimmers are low to medium viscosity oil
spills in harbors, rivers and lakes where there is a need for small
portable recovery units.
The Skimmer Heads without pontoons are used mainly for fixed installations in oil collectors
and industrial separation tanks.
Both versions must be used in combination with
an external vacuum pump with suction capacities from 5-70 m³/h.

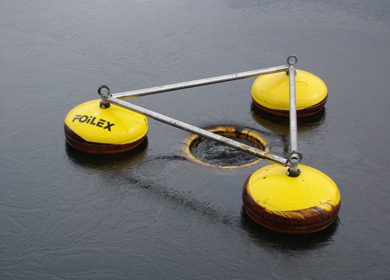

SUCTION WEIR SKIMMERS, 3-pontoons.
FOILEX MICRO Skimmer, 15m3/h
|
|
|
| Free floating 3-pontoon Suction Weir Skimmer with Ø2" Camlock horizontal discharge. |
 |
| Capacity: |
0-15 m³/h (65 USgpm) |
|
| Dim: |
133x120x42 cm (52x47x17 in) |
|
| Weight: |
20 kg (44 lbs) |
|
|
System description |
FOILEX MINI SKIMMER, 30m3/h
|
|
|
| Free floating 3-pontoon Suction Weir Skimmer with Ø3" Camlock horizontal discharge. |
 |
| Capacity: |
0-30 m³/h (130 USgpm) |
|
| Dim: |
169x153x60 cm (66x60x24 in) |
|
| Weight: |
40 kg (74 lbs) |
|
|
System description |
FOILEX MIDI SKIMMER, 70m3/h
|
|
|
| Free floating 3-pontoon Suction Weir Skimmer with Ø4" Camlock horizontal discharge. |
 |
| Capacity: |
0-70 m³/h (310 USgpm) |
|
| Dim: |
215x195x77 cm (85x77x30 in) |
|
| Weight: |
65 kg (145 lbs) |
|
|
System description |

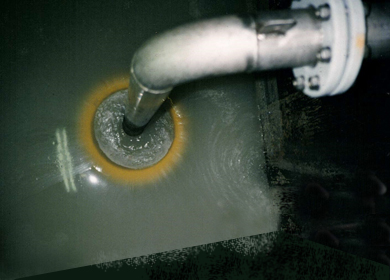

SKIMMER HEAD only, vertical discharge.
FOILEX MICRO WELL SKIMMER, 15m3/h
|
|
|
| Skimmer Head for fixed installation in separation tanks
with vertical Ø2" discharge. |
 |
| Capacity: |
0-15 m³/h (65 USgpm) |
|
| Dim: |
Ø 48x20 cm (Ø 19x8 in) |
|
| Weight: |
12 kg (22 lbs) |
|
FOILEX MINI WELL SKIMMER, 30m3/h
|
|
|
| Skimmer Head for fixed installation in separation tanks
with vertical Ø3" discharge. |
 |
| Capacity: |
0-30 m³/h (130 USgpm) |
|
| Dim: |
Ø 76x28 cm (Ø 30x11 in) |
|
| Weight: |
15 kg (33 lbs) |
|
FOILEX MIDI WELL SKIMMER, 70m3/h
|
|
|
| Skimmer Head for fixed installation in separation tanks
with vertical Ø2" discharge. |
 |
| Capacity: |
0-70 m³/h (310 USgpm) |
|
| Dim: |
Ø 95x40 cm (Ø 37x16 in) |
|
| Weight: |
48 kg (88 lbs) |
|
