Different type of Auxiliary Equipment such as Remote Controls, Sweep Arms, Storage & Transport Containers are available for FOILEX standard Skimmer and Pump Systems.

STC 250 Lagrings- och Transportcontainer RC-60 Remote Control för fjärstyrning av TDS 150 Skimmer


.

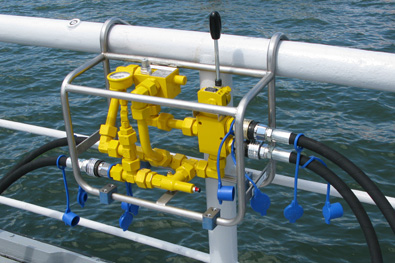

FOILEX REMOTE CONTROL RC-60
Provides remote control for FOILEX TDS 150 Skimmer functions when operated from ships hydraulics. Can be free standing or hinged on rail of ship. Remote Control RC-60
Max flow: 60 l/min (16 USgpm)
Dim: 63x48x50 cm (25x19x20 in)
Weight: 35 kg (77 lbs)

FOILEX REMOTE CONTROL RC-100
Provides remote control for FOILEX TDS 200 Skimmer functions when operated from ships hydraulics. Can be free standing or hinged on rail of ship. Remote Control RC-100
Max flow: 100 l/min (26 USgpm)
Dim: 63x48x50 cm (25x19x20 in)
Weight: 40 kg (84 lbs)

FOILEX REMOTE CONTROL RC 125
Provides remote control for FOILEX TDS 250 Skimmer functions when operated from ships hydraulics. Can be free standing or hinged on rail of ship. Remote Control RC-125
Max flow: 125 l/min (33 USgpm)
Dim: 63x48x50 cm (25x19x20 in)
Weight: 45 kg (100 lbs)

FOILEX SWEEP ARM
For collecting oil in ponds/lakes and close to the shoreline. Equipped with a special collecting device depending on application. Sweep Arm
Sweep radius: 11,6 m (38 ft)
Dim: 17,2x0,5x0,5 m (56x2x2 ft)
Weight: 450 kg (990 lbs)

FOILEX CONTAINER STC 150
Storage & Transport Container in steel equipped with hooks, morings, holders, etc for one complete TDS 150 Skimmer System. S&T Container
Dim: 2,75x2,25x2,15 m (9,0x7,4x7,1 ft)
Weight: 1150 kg (2530 lbs)
Volume: 13 m³ (450 ft³)

FOILEX CONTAINER STC 200
Storage & Transport Container in steel equipped with hooks, morings, holders, etc for one complete TDS 200 Skimmer System. S&T Container
Dim: 2,75x2,25x2,15 m (9,0x7,4x7,1 ft)
Weight: 1150 kg (1980 lb)
Volume: 13 m³ (450 ft³)

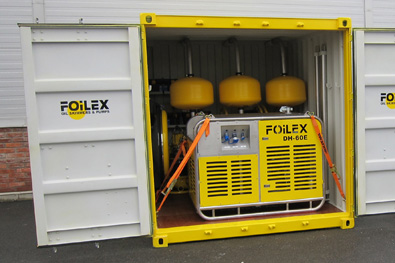

FOILEX CONTAINER STC 250
ISO 10 ft Storage & Transport Container in steel equipped with hooks, morings, holders, etc for one complete TDS 250 Skimmer System. S&T Container
Dim: 2,99x2,44x2,59 m (9,8x7,3x8,5 ft)
Weight: 1400 kg (3080 lb)
Volume: 15,6 m³ (540 ft³)

FOILEX CONTAINER STC 20 ft
ISO 20 ft Storage & Transport Container in steel equipped with hooks, morings, holders, etc for one complete Sweep Arm System. S&T Container 20 ft
Dim: 6,1x2,5x2,6 m (20x8x8 ft)
Weight: 1500 kg (3300 lb)
Volume: 30 m³ (1000 ft³)

www.foilex.com
