TDS Skimmer Systems
 Heart of FOILEX TDS Skimmer System is the hydraulically driven onboard TDS Screw Pump fitted in a 3-pontoon floating frame, along with the original flow controlled, self-adjusting skimming ring that has proven itself since 1991.

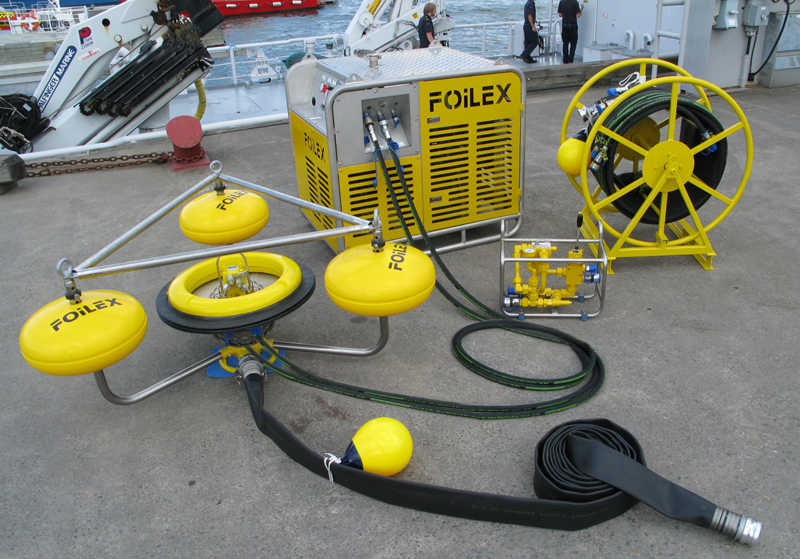

TDS 150 Coast Skimmer System><P> <FONT FACE=
.
FOILEX TDS Skimmer System consists of the following main products:

  • TDS Skimmer, free floating incl. onboard TDS Screw Pump, self-adjusting Inlet Weir and 3-pontoon Flotation Frame.
  • DH Powerpack, self contained diesel driven hydraulic Power Unit incl. control and hose connection panel.
  • HP Hose Package, Reel for Hydraulic and Discharge hoses, incl. lifting yes and fork lift pockets.
  • RC Remote Control, (Optional), Hydraulic Control Unit for operation from external power source or ships hydraulics.
    •  The TDS Skimmer is powered and controlled by FOILEX range of Hydraulic Powerpacks via the hydraulic hoses. The Hose Package consists of hydraulic and discharge hoses stored on Foilex specially designed Hose Reels for easy transport and handling.

    Recovered oil is pumped from the Skimmer up to the available collecting tank through the discharge hose. The hoses are kept together and floating with inflatable floats.


    .
    FOILEX TDS Skimmers are patented high performance weir skimmers for harbour, coastal and offshore oil spills. The skimmers handle all types of oil from light diesel fuel to heavy crude oil mixed with debris.
